Grip Fitting
These measurements are necessary to help make sure the grips you order will be as close to a factory replacement fit as possible. If your grip frame measures 1.060 as it should from the factory, then no measurements are needed. You can simply select the “Standard Frame Dimension” option when ordering.
Make sure to zero your calipers before measuring.

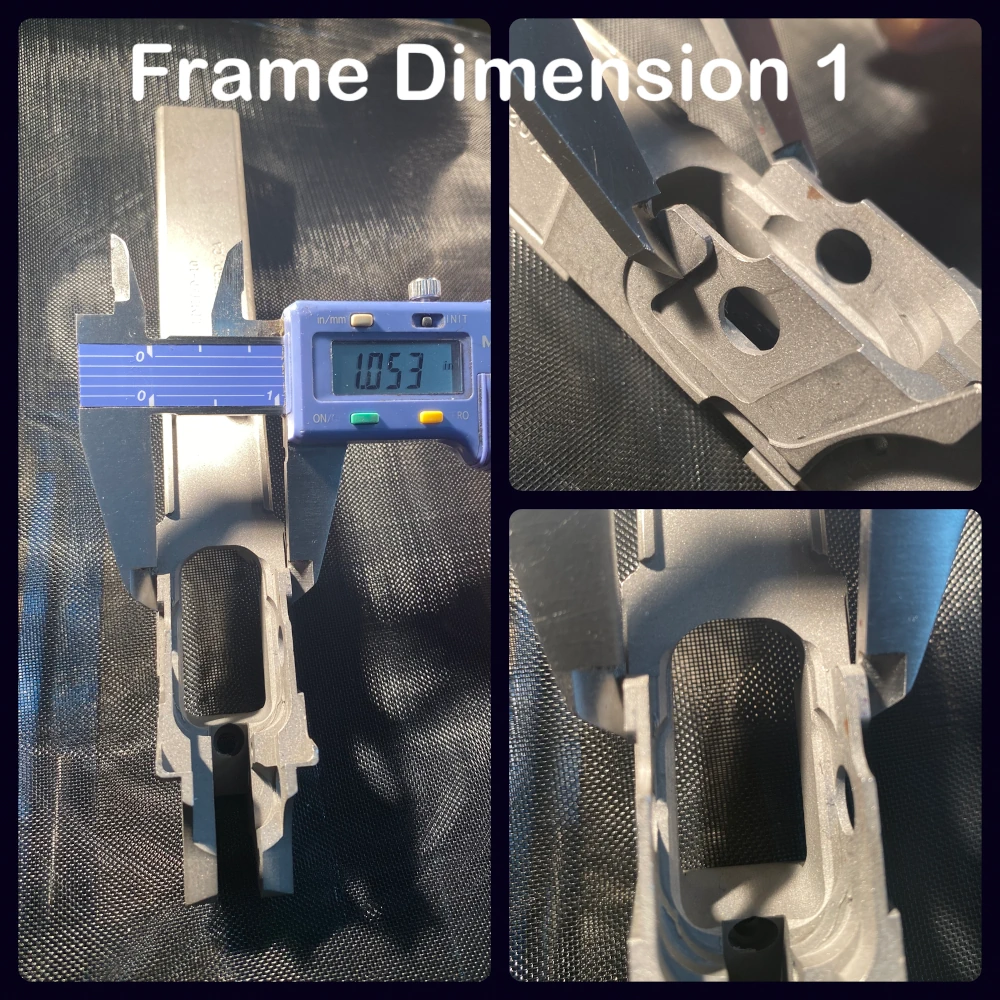

First, using a pair of calipers measure across the two highest points on the grip frame to get the the widest dimension and enter this number into Dimension #1.
Be careful not to contact the raised edge surrounding the recessed grip area.
*Click image to enlarge.

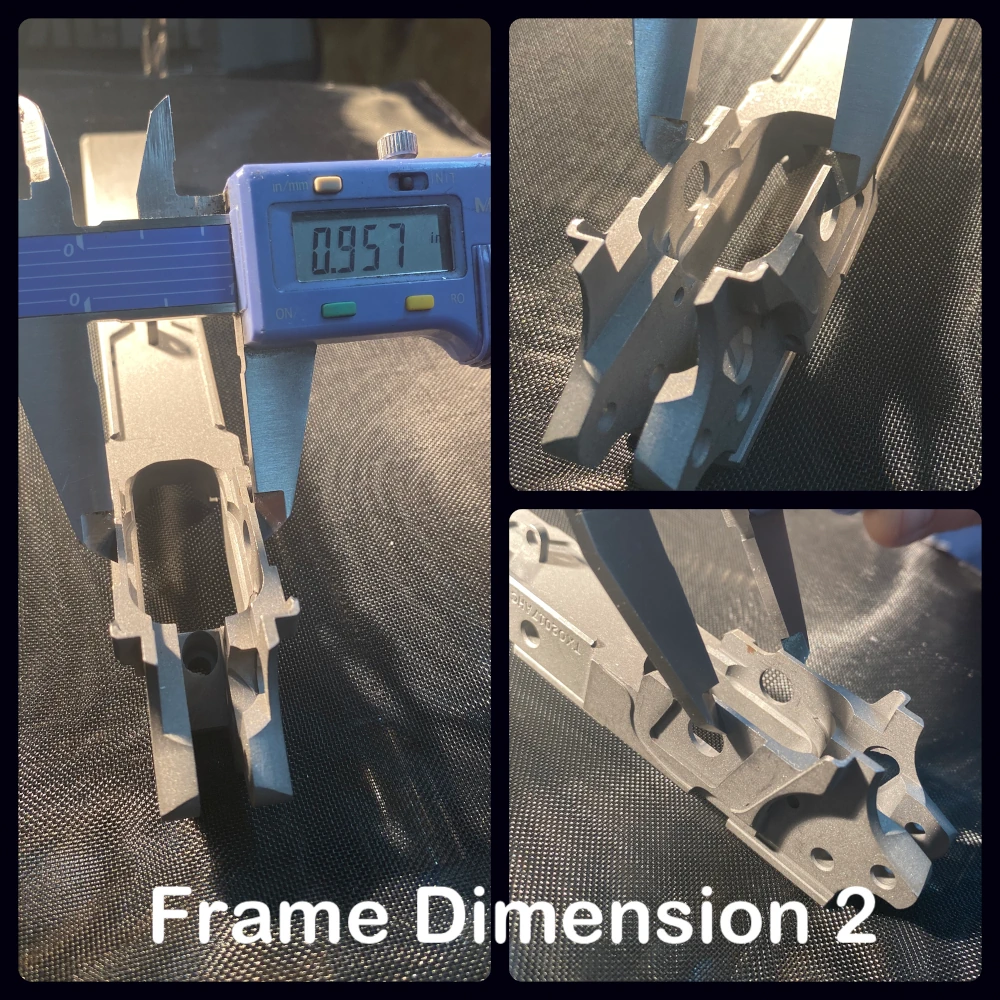

Second, using a pair of calipers, measure across the recessed area in the center of the grip frame where the mounting screw will pass through and enter this number into Dimension #2.
Make sure you’re not contacting any other surfaces that can change your measurement.
*Click Image to enlarge.
